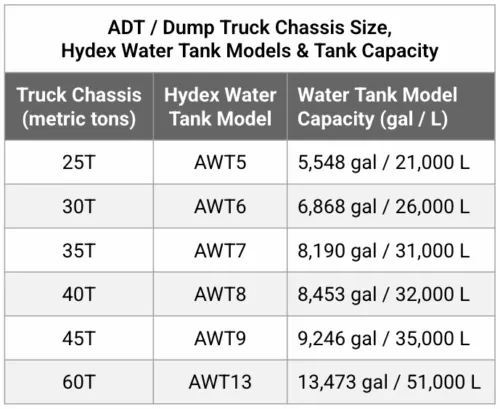

• Compatible with all OEM articulated truck chassis, 25T to 60T
• Combination baffling system features baffle valves in both transverse and longitudinal directions, mitigating liquid surge to avoid rollovers and provide superior stability, braking performance, and operator comfort

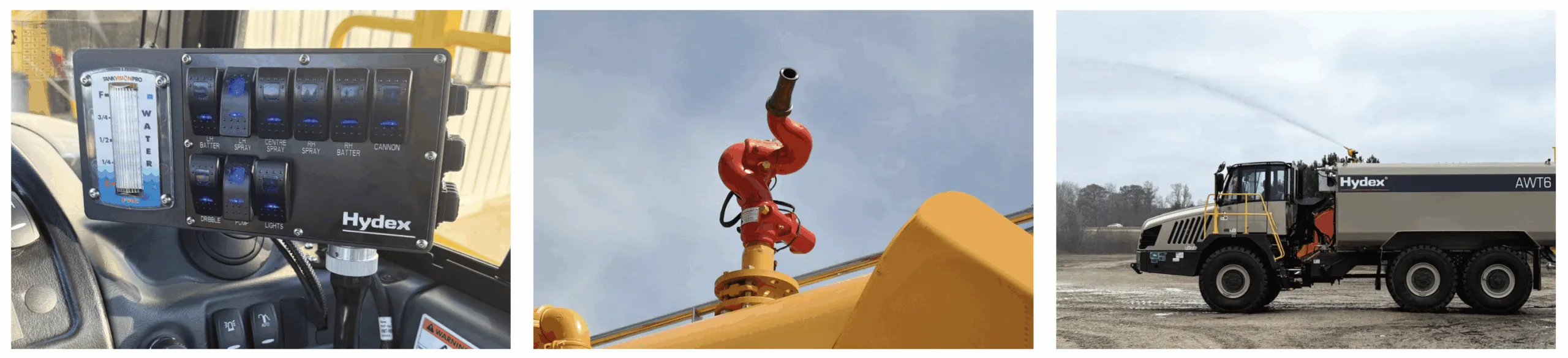

• Logic control system offers intuitive in-cab operation. Access all functions inside the cab instead of having to engage hydraulics, open valves and then open spray heads
• Safety features like spray heads automatically close whenever the truck ignition is switched off
• Manually adjust flow settings, all by controls in the cab:
  • choose a flow rate of 320, 480, or 630 GPM
    (gallons per minute).
  • Dial in water pressure between 40 and 100 PSI
• Customizable water tank systems with several optional add-ons

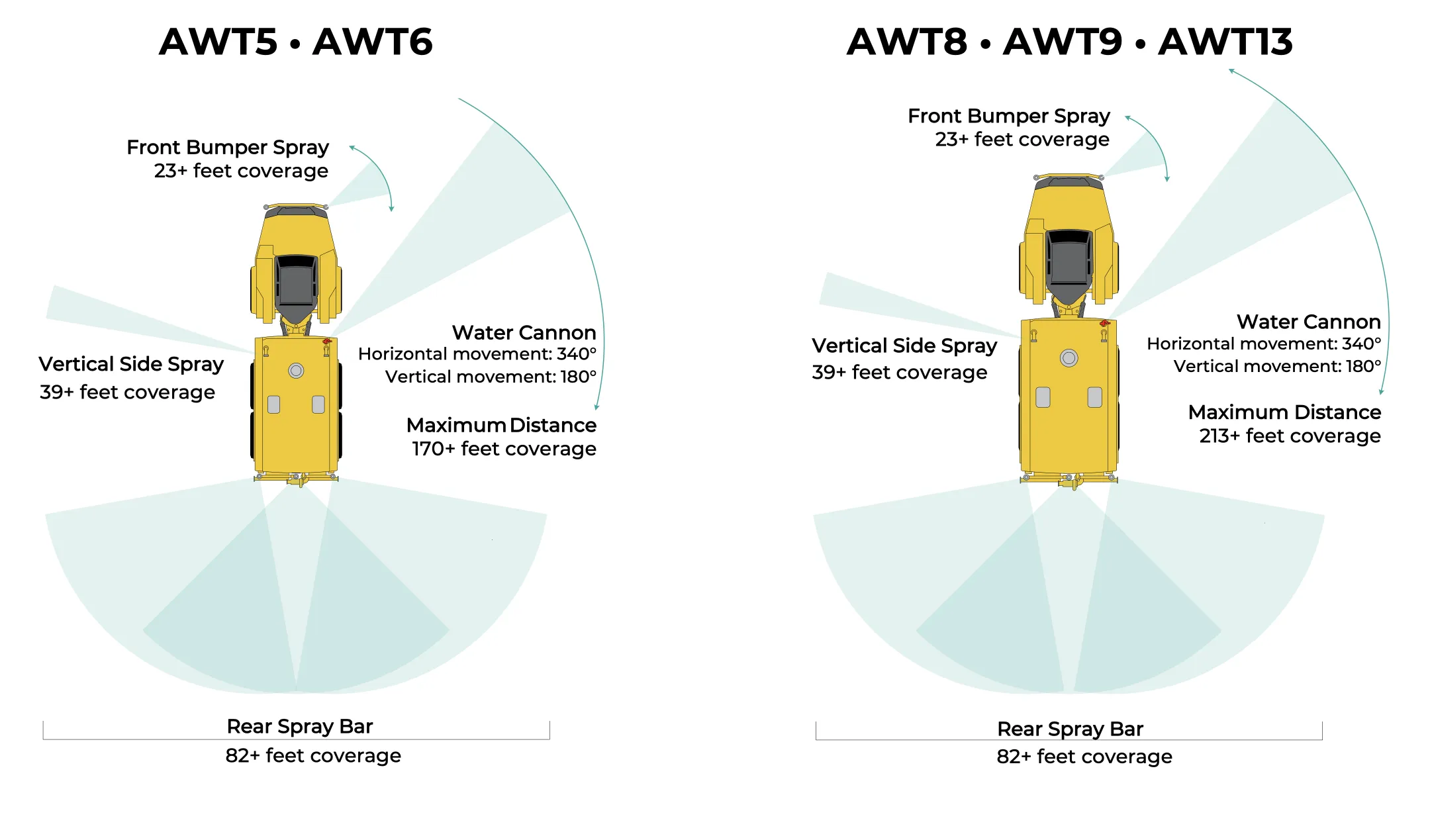

Only the best will do for these vital components of the Hydex water tank system and that's why we chose Elkhart — known for the best on the market. Controlled by a joystick inside the cab, the water cannon shoots up to 170-feet (AWT5, AWT6) or 213-feet (AWT8, AWT9, AWT13). Hard-to-reach areas across mines, quarries and construction sites, are no longer a concern.

Fully adjustable, heavy duty, double-acting hydraulic actuated spray heads

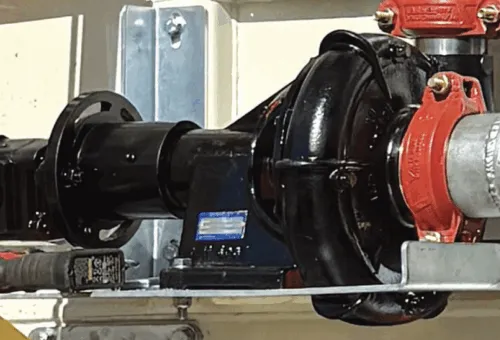

Centrifugal water pump, mounted in an easily accessible location, driven from the truck's hydraulic system to ensure optimum performance.

Hydex tanks are engineered for rugged performance and praised for customization and flexibility. Innovative features and the advanced baffling system enhance productivity and safety. Hydex's superior spray system design delivers uniform water distribution and minimal water wastage thanks to high-quality clog-resistant nozzles.

The commitment to quality extends beyond the product. That's why Hydex chose Hills Machinery — to provide the same level of craftsmanship in product and customer support. The Hills team will help guide water tank system configuration and customization; coordinate a seamless installation and beneficial product training; follow up on performance and product satisfaction; proactively manage preventative maintenance and more.

Hydex and Hills Machinery are dedicated to your success.

Uptime is Standard at Hills

Hills Machinery is serious about your uptime — so serious that all new equipment is covered for one-year by Hills Uptime Operations. One year of Uptime Service coverage for heavy equipment includes:

• Machine monitoring
• Preventive maintenance alerts
• Alerts when downtime is anticipated
• Preventive maintenance parts & service

Learn more about Hills Machinery Uptime Operations & Uptime Services

Crafted for exceptional durability and ruggedness — assuring no movement. Designed with a foldable bottom step, encouraging operator safety with multiple points of contact when climbing.

Two duck-bill flusher nozzles are positioned on the front bumper of the truck, hydraulically actuated by two in-line valves and operated from a switch on the in-cab control panel

Rear dribble bar penetrates pressurized water onto the ground. The water is fed directly from the bottom of the tank. Our dribble bar option operates by gravity, therefore can be used without turning the pump on.
***Strongly recommend if mission is to soak haul roads.

Top-of-tank safety handrail (permanent standing or foldable) accompanied by underfoot non-slip safety grips. **Can be designed and manufactured to any site specification.

Accommodates 50-feet of 1-inch hose and comes with an adjustable nozzle

Have ultimate awareness of surroundings with rear back up camera.

Contact your local Hills  for more information or complete the form below and we'll contact you as soon as possible. Please allow at least one business day.

Interested in a new articulated dump truck with Hydex water tank system?

Check out new Rokbak articulated dump trucks.

• 6,000-gallon water tank (AWT6) & 370 horsepower RA30
• 9,000-gallon water tank (AWT9) & 444 horsepower RA40

Each Rokbak truck chassis is built powerful and robust for off-road hauling. The comfortable ride and easy, responsive controls are undeniable. With Hills Machinery's expertise and one-year of Uptime Services including real-time machine monitoring, preventative maintenance and downtime prevention, a new Hydex / Rokbak articulated water truck is unbeatable.
